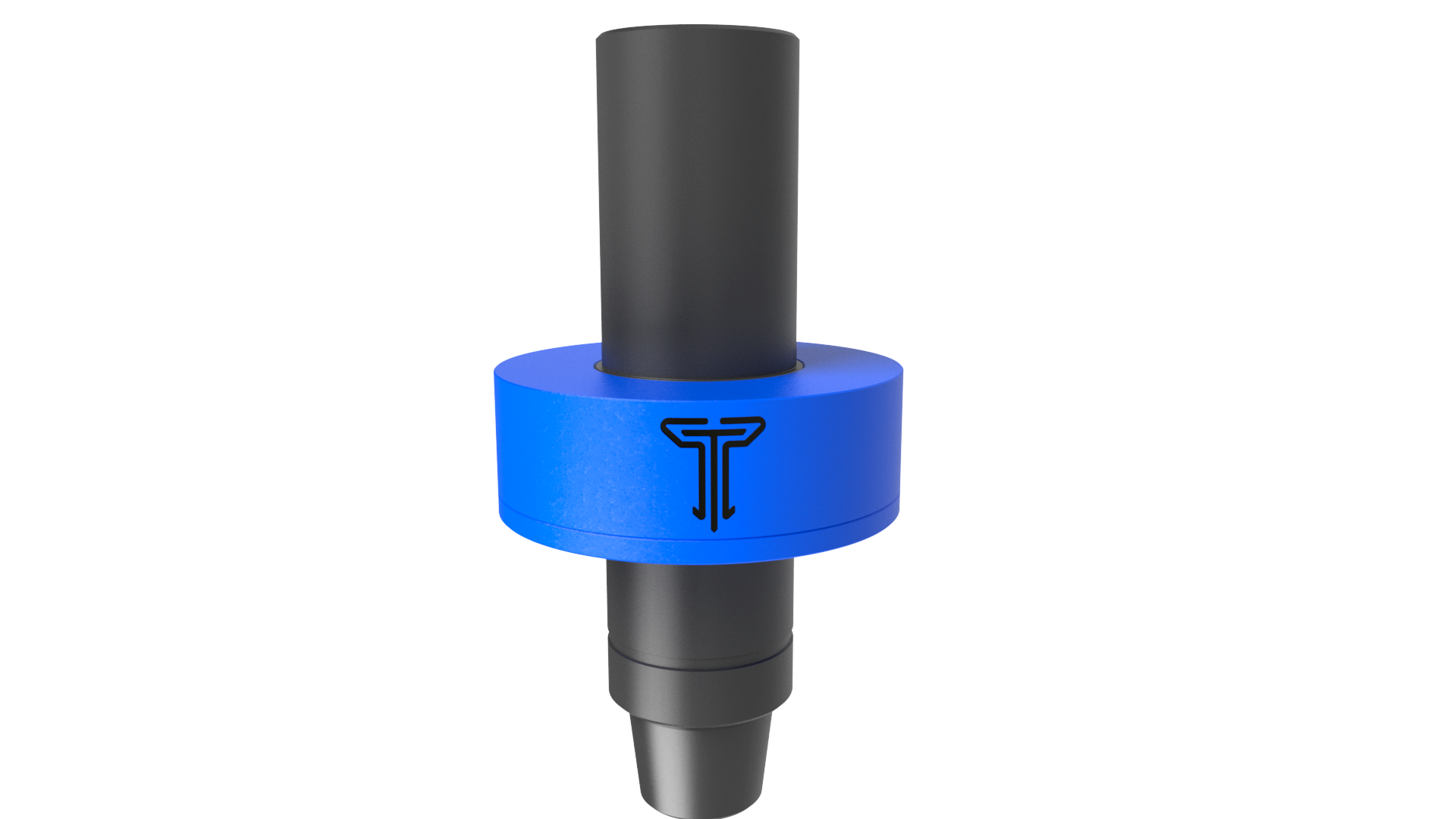

WTS™
WIRELESS TORQUE SUB
A wireless system that monitors and records applied tension, torque, and turns in each connection, displaying results in a chart. It features dual electronic systems (primary and backup) to minimize non-productive time.
Features
Detailed Reporting
Generates comprehensive reports including Torque vs Time/Turns charts, connection tallies, and job statistics.
Redundant System
Features two independent electronic systems (primary and backup) to minimize non-productive time in case of a failure.
Encoderless Design
Eliminates the need for external encoders thanks to precise internal gyroscopes for measuring turns.
Specification Summary
| Specification | WTS 5-5.5K | WTS 8-8.5K |
|---|---|---|
| Torque Capacity | 55,000 ft-lb | 85,000 ft-lb |
| Tension Capacity | 500 Ton | 800 Ton |
| Connection | 6 5/8" Reg Pin Up - Box Down | 7 5/8" Reg Pin Up Box Down |
| Battery Life | 120 Continuous Days | 120 Continuous Days |
| Wireless Transmission | 2.4 GHz | 2.4 GHz |
| Operating Temperature Range | -40°C to 70°C | -40°C to 70°C |
| Accuracy | +/- 0.5% of Full scale | +/- 0.5% of Full scale |
| Turns Resolution | +/-0.001 (40 RPM Max.) | +/-0.001 (40 RPM Max.) |
| Enclosure Rating | Waterproof | Waterproof |
| Design | API 8C | API 8C |
| Weight | 500 lb | 650 lb |
