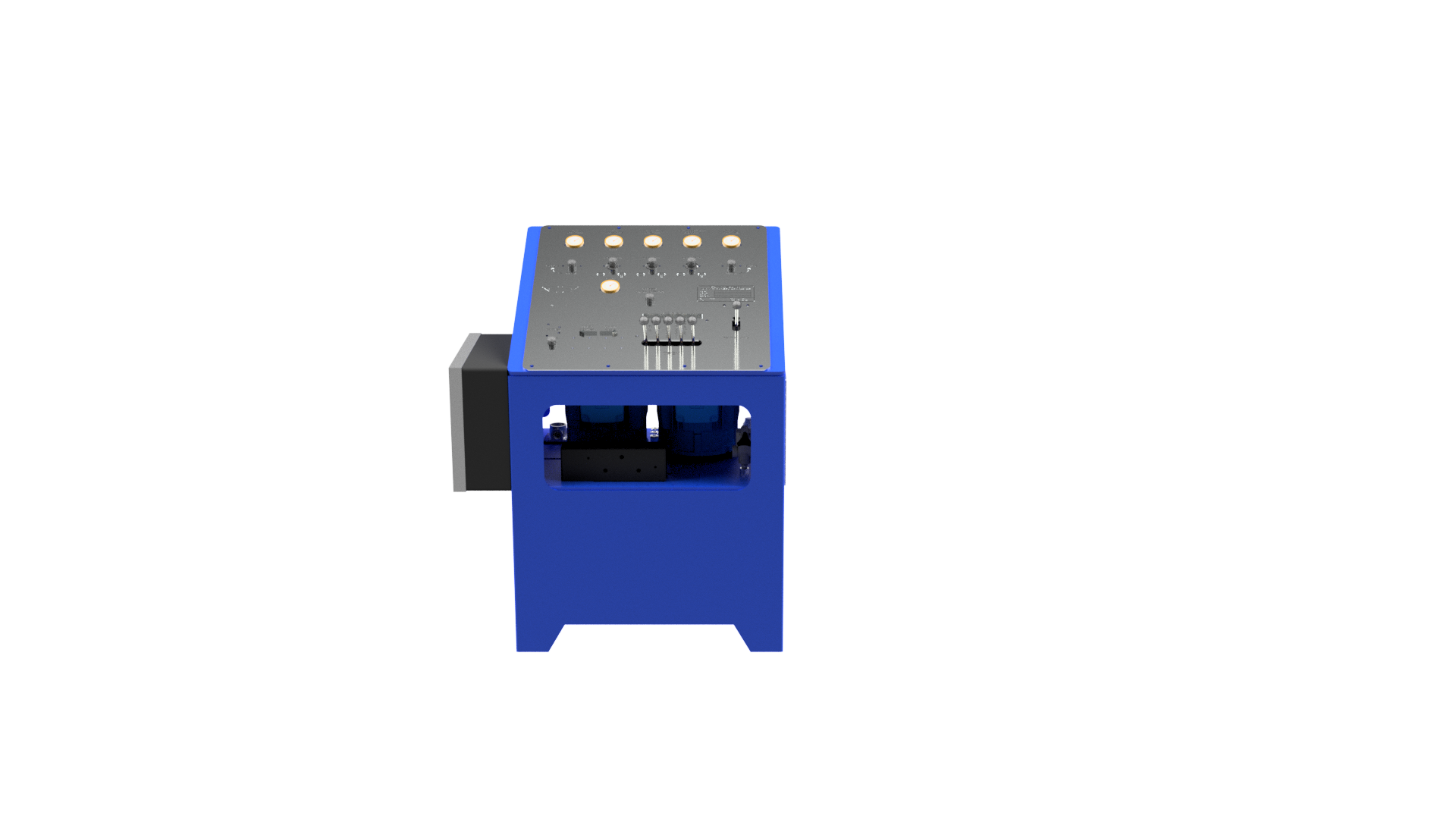

DUAL HPUe™
ELECTRIC HYDRAULIC POWER UNIT
The Dual Electric Hydraulic Power Unit supplies reliable power to circuits like HCRT™ or C-Plate Back Up™. Driven by two electric motors, if one fails, the other automatically takes over, ensuring uninterrupted, safe operation away from the rig floor.
3 Built-in Security Systems
Mechanical Locker
Control Spider/FMS, HCRT™, and more, increasing efficiency with less personnel on the rig floor.
Hidropneumatic Valve
Operate up to 3 tools simultaneously without the risk of accidentally releasing the casing string.
Safety Button
Guarantees that HCRT™ will not release the casing before the spider has been safely activated.
Characteristics
| Specification | Value |
|---|---|
| Max. Hydraulic Pressure | 3,000 psi (207 bar) |
| Max. Pneumatic Pressure | 150 psi (10 bar) |
| Type of pump | Gear pump |
| Pump flow rate | 9 gpm (41 L/min) |
| Engine Type | Electric Three phase |
| Voltage | 440V / 220V |
| RPM | 1,800 RPM |
| Engine Power | 15 HP |
| Hydraulic tank capacity | 35 Gal (133 L) |
| Electric starter | Direct A 440 V in explosion proof box NEMA 7 |
| Type of Electrical Connector | Apleton ADR 6034 BC |
