External Grip
HCRTeTM

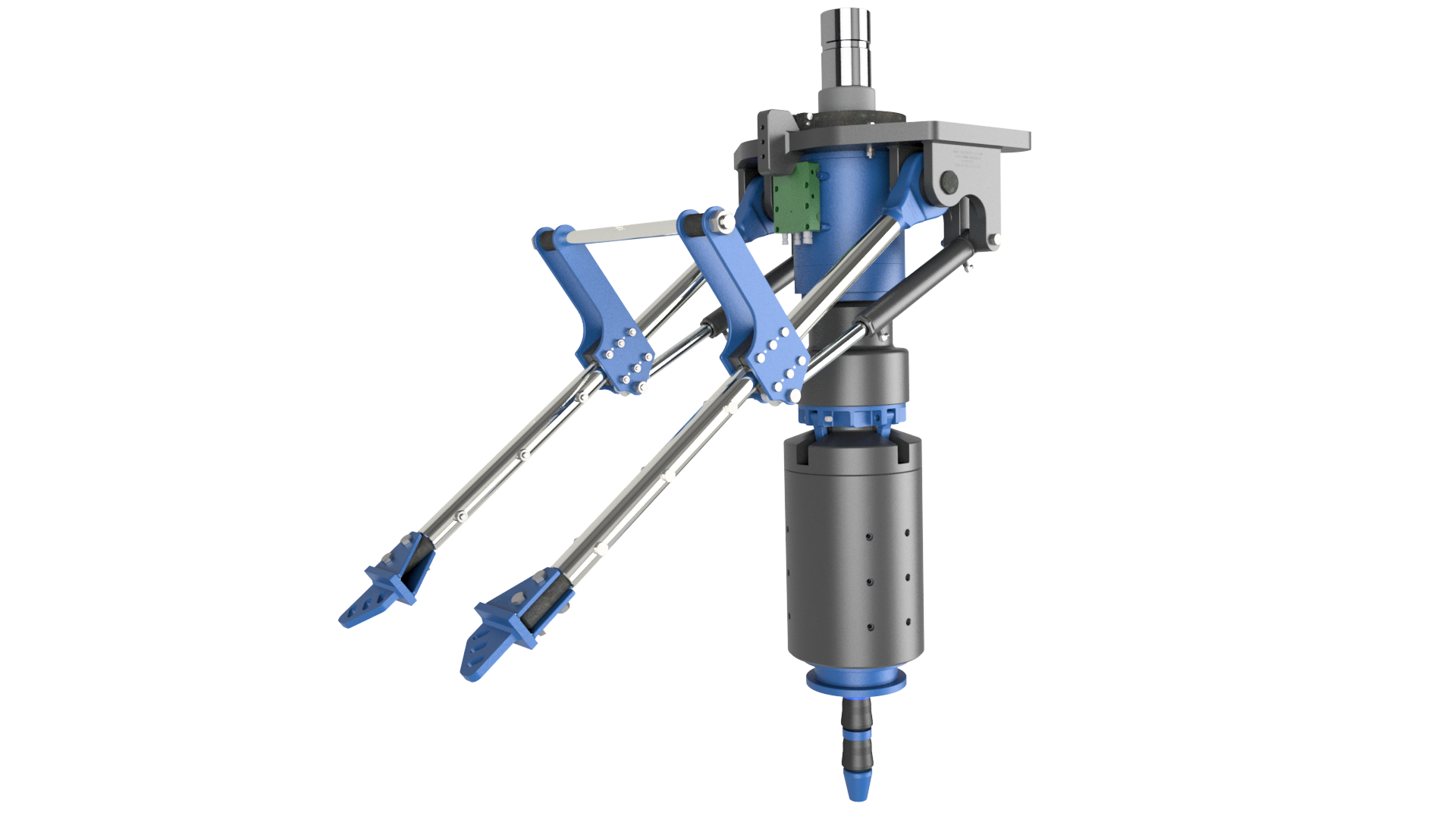

Hydraulic Casing Running Tool - External
HCRTeTM HT 500
The HCRTeTM is a revolutionary external grip tool designed for running tubulars and casings. Its robust design ensures a secure grip without damaging the pipe, providing high torque and hoisting capacity for the most demanding operations.
Technical Specifications
HCRTeTM HT 500
| Specification | Value |
|---|---|
| Type | External |
| Mandrel (inch) | 7.750 |
| Max. Hoisting Capacity (Short tons) | 500 |
| Max. Hoisting Capacity (Tonnes) | 453 |
| Max. Torque Capacity (Ft.lb) | 65,000 |
| Upper Connection | 6 5/8 Reg Box |
| Max. Circulating Pressure (PSI) | 5,000 |
| Fluid Bore (inch) | 2 |
| Max. Flow Rate (GPM) | 800 |
| Working Temperature Range | -40°C to 90°C |
| Overall Length (inch) | 109 |
| Max. Continuous Speed (RPM) | 120 |
| Intermittent Speed (RPM) | 200 |
| Operating Range (inch) | 3.500 - 7.750 |
