Hydraulic HCRT
Smart & Reliable Casing Running
Our hydraulic HCRT delivers dependable solutions for casing running and drilling, ensuring efficiency, precision, and safety.
Performance

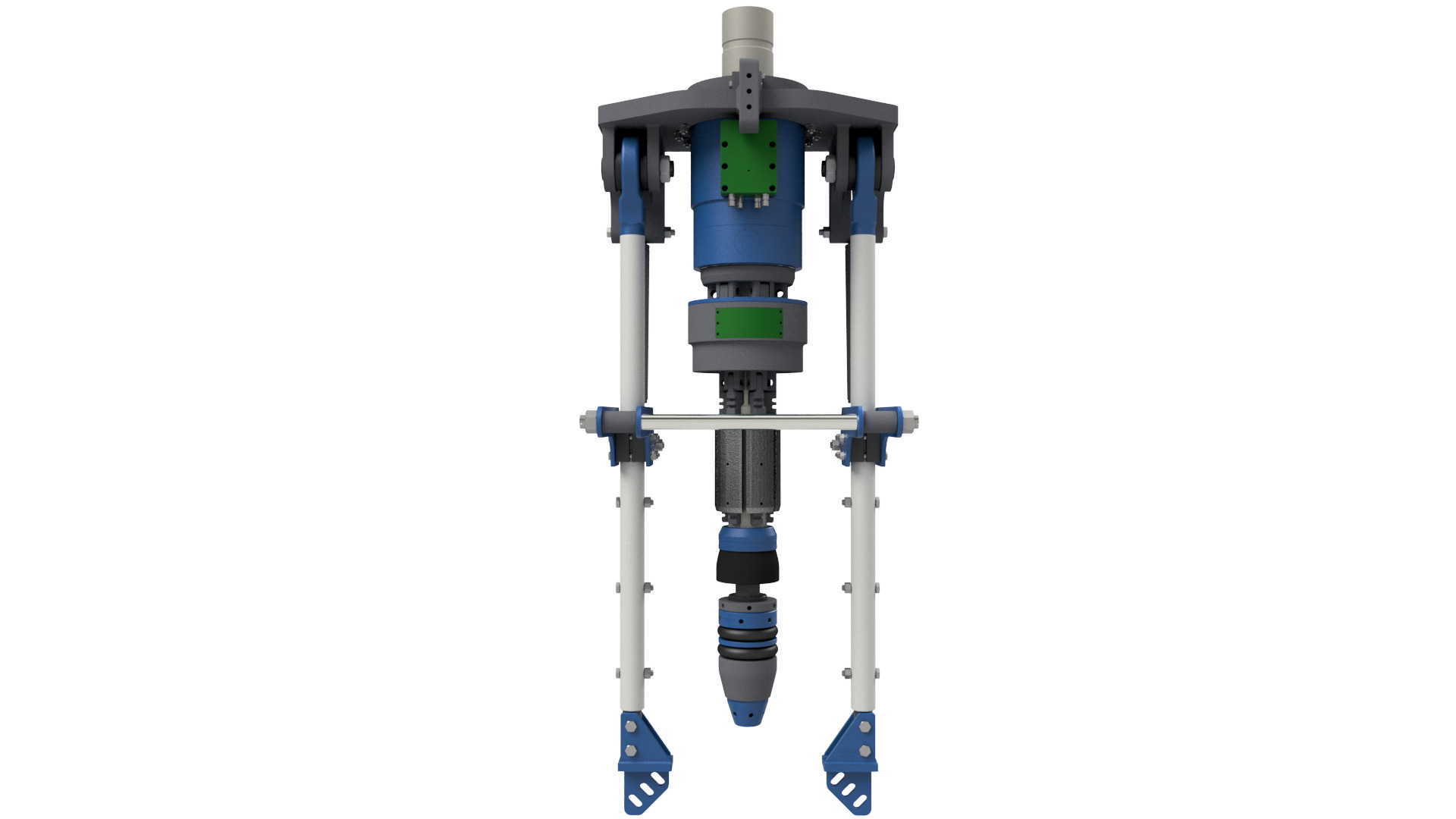

HCRTi
Hydraulic Casing Running Tool
Superior Technology for Safe & Efficient Operations
The HCRTi is a hydraulically activated tool designed for casing running or drilling operations. It allows for makeup, breakout, rotation, reciprocation, filling, circulation, and cementing of strings, reducing operational time and costs while improving safety.
Technical Specifications
HCRTi Models
| Specification | HCRTi 7.000-480 | HCRTi 7.000 HT 500 |
|---|---|---|
| Max. Hoisting Capacity | 480 Short tons / 435 Tonnes | 500 Short tons / 453 Tonnes |
| Max. Torque Capacity | 65,000 Ft.lb | 65,000 Ft.lb |
| Upper Connection | 6 5/8 REG | 6 5/8 REG |
| Max. Circulating Pressure | 5,000 psi | 5,000 psi |
| Fluid Bore | 1.500 inches | 1.500 inches |
| Operating Range | 6.63 - 20.00 inches | 6.63 - 20.00 inches |
| Max Continuous Speed | 120 rpm | 120 rpm |
Combined Load Operation Curve
| Specification | HCRTi 9.625-730 | HCRTi 9.625 HT 800 |
|---|---|---|
| Max. Hoisting Capacity | 730 Short tons / 660 Tonnes | 800 Short tons / 725 Tonnes |
| Max. Torque Capacity | 100,000 Ft.lb | 100,000 Ft.lb |
| Upper Connection | 7 5/8 Reg Box | 7 5/8 Reg Box |
| Max. Circulating Pressure | 5,000 psi | 5,000 psi |
| Fluid Bore | 2 inches | 2 inches |
| Operating Range | 9.625 - 30.00 inches | 9.625 - 30.00 inches |
| Max Continuous Speed | 120 rpm | 120 rpm |
Combined Load Operation Curve
Innovation

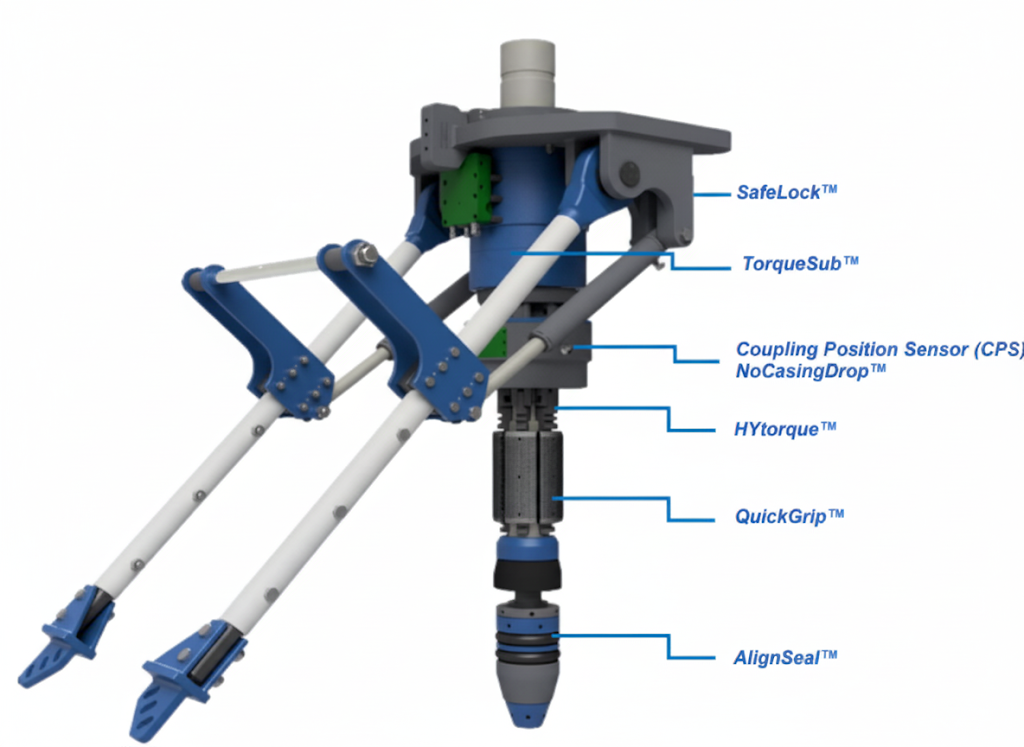

Interactive Features Diagram
SafeLock™
TorqueSub™
NoCasingDrop™
HYtorque™
QuickGrip™
AlignSeal™
Hover over a feature to see the description.
Media
Featured Stories
Technology
Innovative Features
Equipped with SafeLock™, TorqueSub™, NoCasingDrop™, QuickGrip™, and AlignSeal™ for superior performance.
Monitoring
Electronic Monitoring System
Full control with real-time monitoring of torque, tension, and RPM. Generates detailed post-job reports.
