CPBU™
C-PLATE BACK UP™

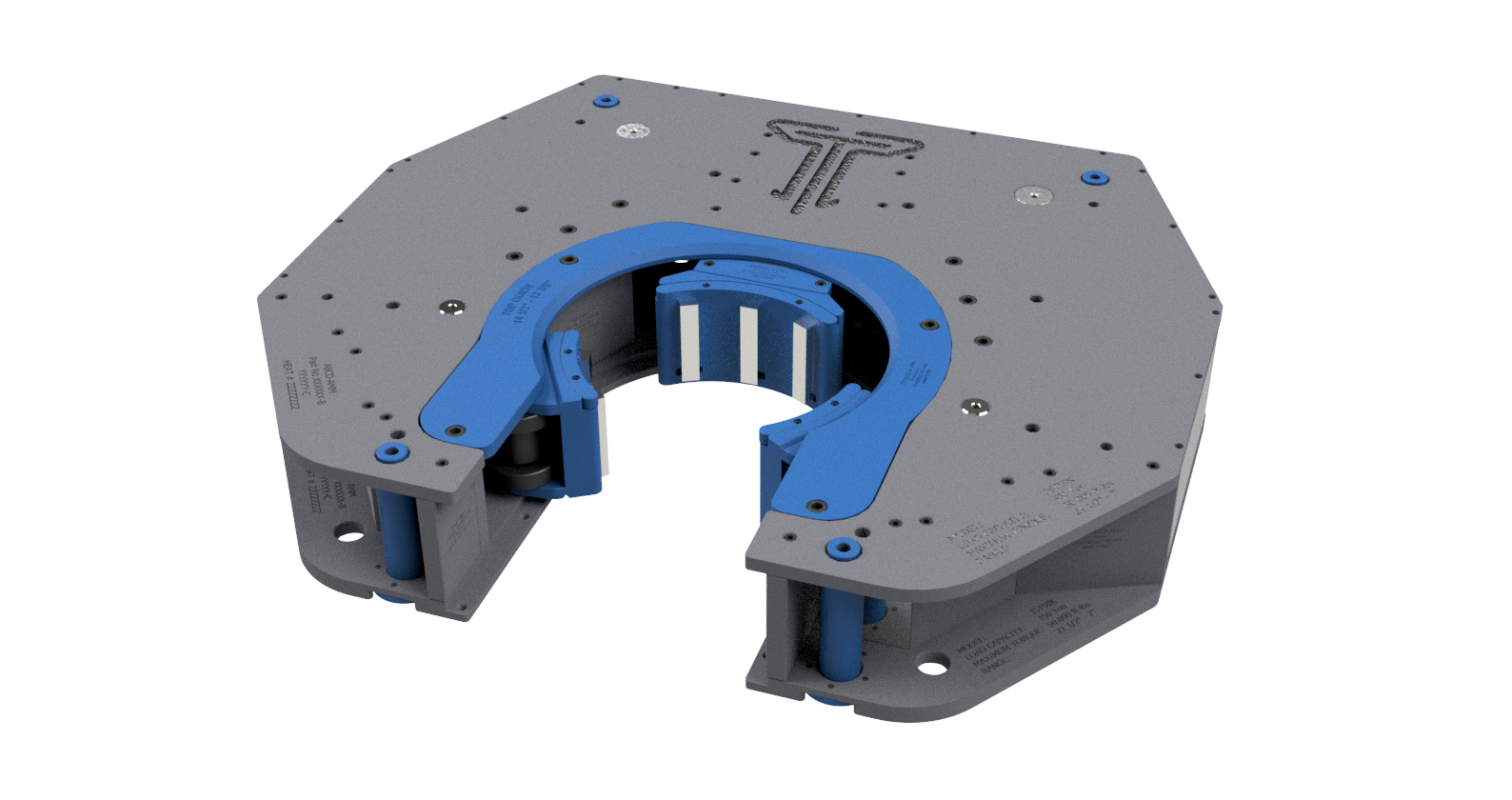

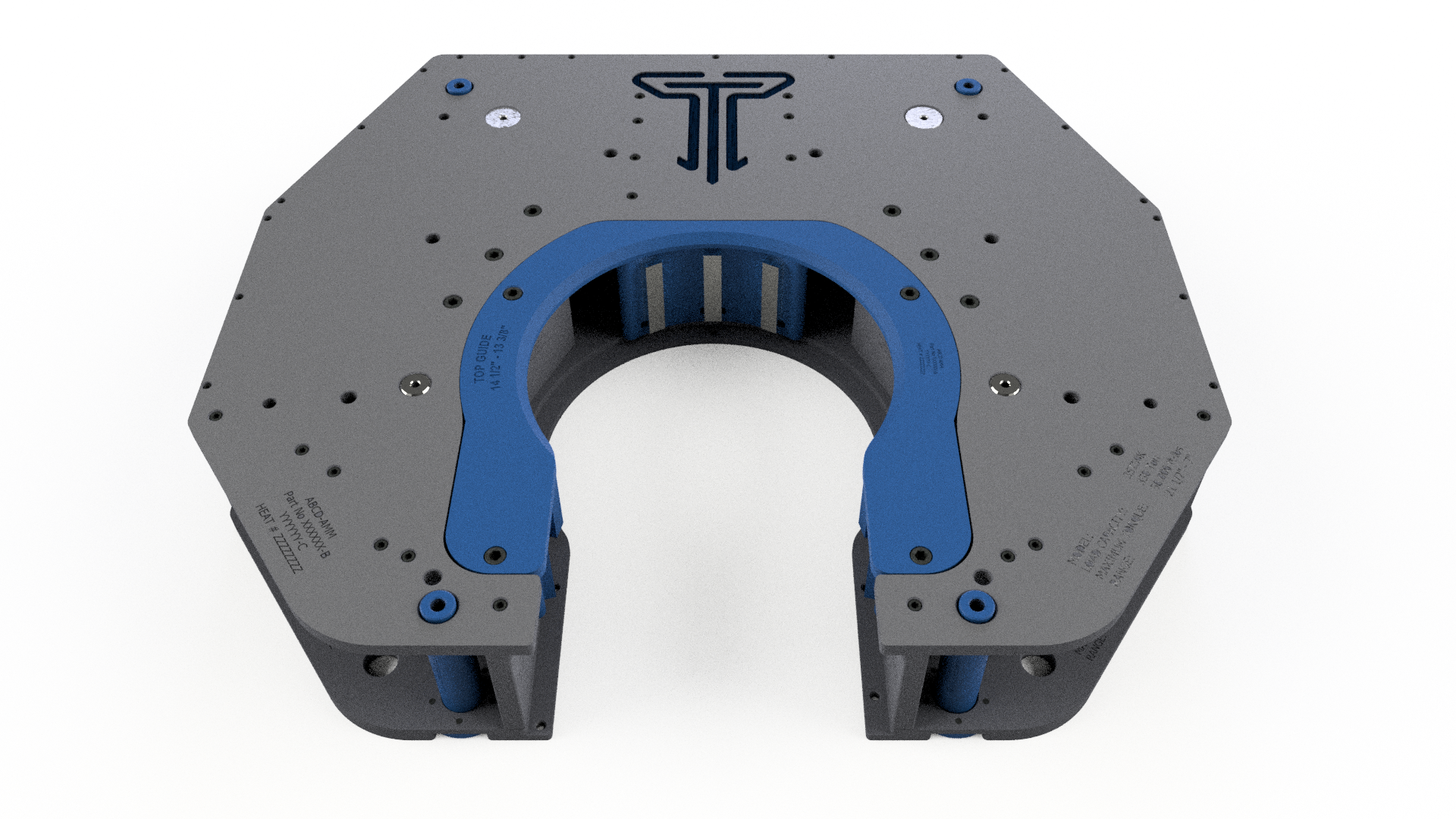

The C-Plate Back Up™ is a hydraulic tool that operates through a three-jaw system (one central and two auxiliary jaws). The jaws perfectly adjust to the joint’s circumference and the float equipment, allowing for make-up and break-out operations without any additional maneuvers. This tool is operated by an HPU console operator. The C-Plate Back Up™ eliminates the need for hazardous manual casing tongs, preventing accidental injuries to personnel. Additionally, it allows for the installation of any spider or bowl over itself and is adjustable to any API rotary table size.
Core Advantages
Enhanced Safety
Eliminates hazardous manual tongs, drastically reducing personnel injury risk during operations.
Highly Adaptable
Fully adjustable to any API rotary table size and supports installation of spiders or bowls over itself.
Specialized Use
Ideal for pipes with chrome surface coating, utilizing GRIT FACE or NON-MARKING INSERTS.
Specification Summary
| Specification | Model 5-8.0K | Model 100K | Model 150K |
|---|---|---|---|
| Load Capacity (Ton) | 500 | 800 | 1,000 |
| Max Torque @ 2500 PSI (Ft lb) | 80,000 | 100,000 | 150,000 |
| Hydraulic Pressure (PSI) | 2,500 | 2,500 | 2,500 |
| Working Temp. Range | -40°C to 100°C | -40°C to 100°C | -40°C to 100°C |
| Dimensions (Inch) | 41.7 x 35.8 x 10.4 | 59 x 65 x 12 | 80 x 75 x 15 |
| Weight (lb) | 1870 | 2535 | 3860 |
| Operating Range (Inch) | 3 1/2 - 14 1/2 | 7 - 22 | 9 5/8 - 36 |
