CMT™

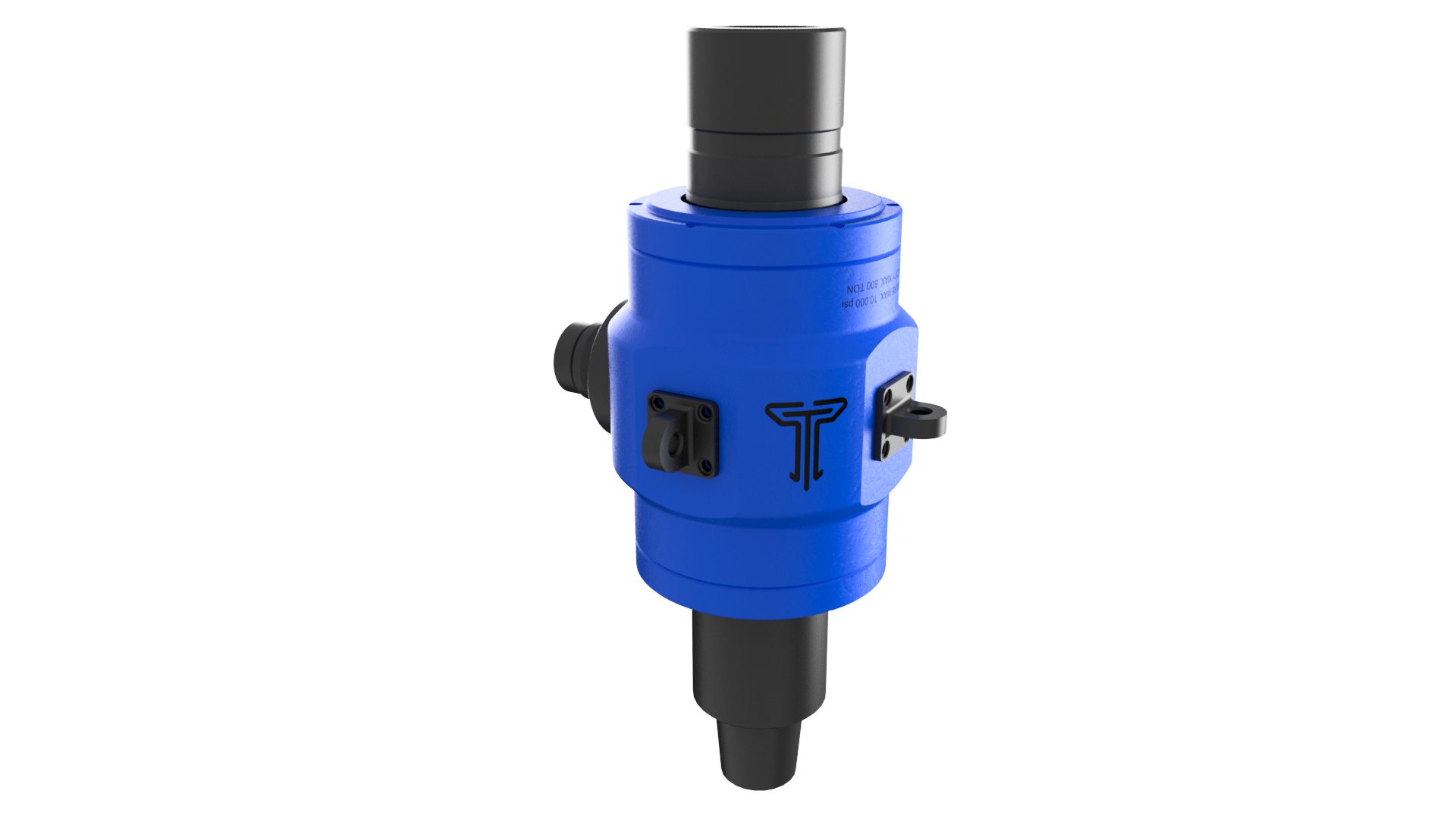

CEMENT SWIVEL TOOL
The Cement Swivel Tool enables an almost immediate transition between running casing and cementing. It allows the casing to rotate and move reciprocally during the cementing process and can be installed in any hydraulic or mechanical casing running system.
Core Advantages
Simultaneous Operation
Enables an almost immediate transition between running casing and the cementing process.
Enhanced Cementing
Allows the casing to rotate and move reciprocally during cementing, improving bond quality.
Easy Integration
Simple to connect and does not interfere with operations. Compatible with any hydraulic or mechanical system.
Specification Summary
| Specification | CMT 5-6.0K | CMT 8-8.5K |
|---|---|---|
| Max Hoisting Capacity (Ton) | 500 | 850 |
| Max Torque (Ft lb) | 60,000 | 85,000 |
| Max Pressure Rating (PSI) | 10,000 | 10,000 |
| Operating Temperature Range | -40°C to 90°C | -40°C to 90°C |
| Swivel Length (Inch) | 41 1/4 | 41 1/4 |
| Swivel Diameter (Inch) | 15 7/8 | 17 7/8 |
| Internal Diameter (Inch) | 2 | 2 |
| Max Flow Rate (GPM) | 800 | 800 |
| Max Speed (RPM) | 50 | 50 |
| Connection | 6 5/8" Reg STD | 7 5/8" Reg STD |
| Cementation Connection | 2" 1502 | 2" 1502 |
