CAT SYSTEM
Version 3.2

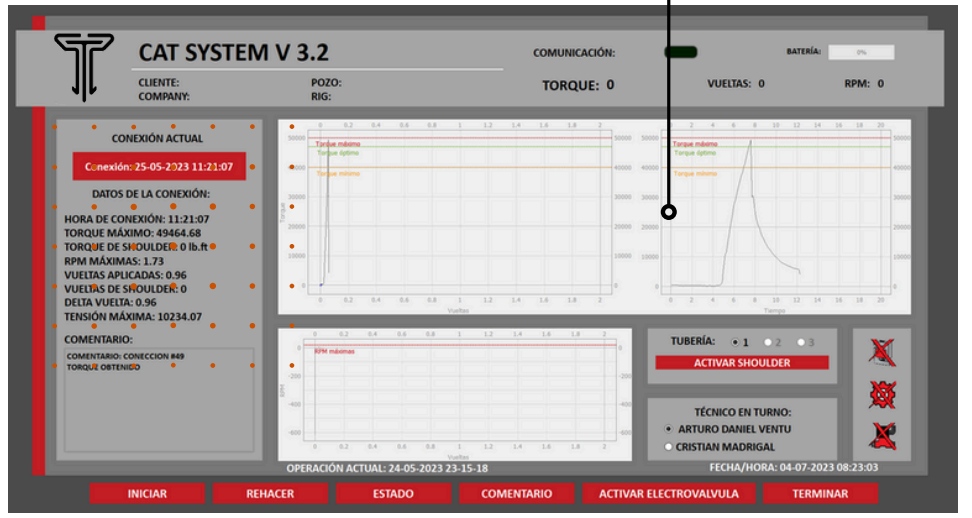

The computerized analysis system CAT SYSTEM version 3.2 allows for real-time monitoring of torque behavior, turns, and RPM in each connection. It features a hydraulic cut system activated when optimum torque is achieved and allows for remote operation display.
Key Features
Real-time Monitoring
Monitors torque, turns, and RPM for each connection as it happens, displaying detailed charts.
Hydraulic Cut System
Automatically activates a hydraulic cut when the optimum torque is achieved, ensuring precision.
Remote Operation
This version allows the entire operation to be displayed and monitored remotely for greater control.
Technical Characteristics
| Characteristic | Value |
|---|---|
| Torque Capacity | 0 - 80,000 ft-lb |
| Battery Life | 120 Continuous Days |
| Wireless Transmission | 2,4 GHZ |
| Operating Temperature Range | -40°C to 70°C (-40°F to 158°F) |
| Accuracy | +/- 0.5% of Full scale |
| Turns Resolution | +/- 0.001 (40 RPM Max.) |
| Enclosure Rating | Waterproof |
| Data Collecting Time | 35 mms |
| Element Tension Capacity | 2 - 20 TON |
| Displayed Charts | Turns/Torque, Time/Torque, RPM/Turns |
| Electro valves Pressure Capacity | 3,600 PSI |
| Languages | English / Spanish |
